What Gauge Wire for 1500 Watt Amp: Expert Guide for Best Performance
Choosing the right wire gauge for your 1500 watt amp is important for safety, performance, and sound quality. Many beginners struggle with this choice because wire gauge numbers, amp ratings, and wattage can feel confusing. If you use the wrong size wire, your amp might not get enough power, or you could risk overheating and damaging your car audio system. This article will help you pick the best wire gauge, explain the basics, and give practical advice for connecting your amp.
Understanding Wire Gauge
Wire gauge is a number system that shows the thickness of a wire. In the US, most car audio systems use the American Wire Gauge (AWG) standard. A lower AWG number means the wire is thicker and can carry more electricity. For example, a 4 AWG wire is much thicker than a 10 AWG wire.
- Thicker wire = lower AWG number = more power capacity
- Thinner wire = higher AWG number = less power capacity
A thicker wire allows more electrical current to flow, which is important for high-power amps like a 1500 watt amp.
Why Wire Gauge Matters For A 1500 Watt Amp
Your amp draws a lot of current when playing loud music. If the wire is too thin, it can:
- Limit power delivery, causing weak sound
- Overheat, leading to damage or fire risk
- Reduce efficiency, wasting energy
The right wire gauge keeps your system safe and lets your amp perform at its best.
Credit: bigjeffaudio.com
Calculating Current Draw For A 1500 Watt Amp
To select the right wire, you need to know how much current your amp will use. Here’s a simple way to estimate:
- Find the voltage: Most car amps run on 12 volts (V).
- Calculate current: Divide power by voltage.
Formula:
Current (amps) = Power (watts) / Voltage (volts)
Example for a 1500 watt amp:
1500 Watts ÷ 12 Volts = 125 Amps
This means your amp could draw up to 125 amps at full power.
Recommended Wire Gauge For A 1500 Watt Amp
The wire gauge depends on both current draw and the distance from the battery to the amp. Longer wires need to be thicker to prevent voltage drop.
Here’s a quick guide for 12V car audio systems:
| Current (Amps) | Wire Gauge (AWG) | Max Length (Feet) |
|---|---|---|
| 100-125 | 2 AWG | Up to 20 ft |
| 85-100 | 4 AWG | Up to 15 ft |
| 65-85 | 4 AWG | Up to 10 ft |
| 40-65 | 6 AWG | Up to 10 ft |
For a 1500 watt amp (125 amps), use 2 AWG wire if your power cable is longer than 10 feet. If your run is shorter, 4 AWG might work, but 2 AWG is safer and future-proof.
Comparing Wire Gauges For 1500 Watt Amps
Here’s another comparison to help visualize the differences:
| Wire Gauge | Diameter (mm) | Max Ampacity (Amps) | Typical Use |
|---|---|---|---|
| 2 AWG | 6.54 | 125 | High-power amps |
| 4 AWG | 5.19 | 100 | Mid-power amps |
| 6 AWG | 4.11 | 65 | Low-power amps |
Key insight: Many beginners underestimate the importance of wire thickness. Even if your amp rarely hits full power, using a thinner wire can still cause problems over time.
Practical Example
Suppose your amp is in the trunk, and your battery is under the hood. The distance between them is about 15 feet. You have a 1500 watt amp. Here’s what you should do:
- Choose 2 AWG wire for the power cable.
- Use the same gauge for the ground wire.
- If your run is shorter (under 10 feet), 4 AWG may work, but 2 AWG is safer.
Tip: Always round up for safety. If you’re not sure, pick a thicker wire.
Common Mistakes Beginners Make
Many people new to car audio make these errors:
- Using too thin wire because it’s cheaper or easier to work with
- Ignoring the wire length when choosing gauge
- Mixing wire gauges (power wire thicker than ground wire)
- Buying wires with poor-quality copper or too much insulation
A good quality, pure copper wire is always better than aluminum or copper-clad aluminum.
How To Install Wire For A 1500 Watt Amp
Here’s a simple step-by-step guide:
- Measure the distance from your battery to the amp, including curves and bends.
- Buy enough 2 AWG wire for both power and ground.
- Use a proper fuse holder near the battery. The fuse should match the amp’s current draw (125 amps for 1500 watts).
- Connect the power wire from the battery to the amp, using secure terminals.
- Connect the ground wire from the amp to a clean metal spot near the amp.
- Double-check all connections for tightness and corrosion.
- Test the system before closing panels or covers.
Pro tip: If your amp setup includes more than one amplifier, combine the total wattage and adjust the wire gauge accordingly.
Credit: www.crutchfield.com
Choosing The Right Fuse Size
A fuse protects your system from electrical shorts. For a 1500 watt amp, use a 125 amp fuse with your 2 AWG wire. If your amp’s manual recommends a slightly lower fuse, follow their advice.
Quality Matters: Copper Vs. Aluminum Wire
Not all wires are equal. Copper wire is the best for car audio because:
- Conducts electricity better
- Less resistance
- Safer and more durable
Some cheap wires use copper-clad aluminum (CCA). These are less efficient and can overheat faster. Always check the packaging and buy pure copper wire if possible.
How Voltage Drop Affects Your Amp
If your wire is too thin or too long, you lose voltage as current travels. This is called voltage drop. It can:
- Reduce your amp’s power output
- Cause distortion or clipping
- Make your system less reliable
A thick wire (2 AWG) keeps voltage drop low, so your amp gets the power it needs.
Signs Your Wire Is Too Thin
If you use a wire that’s too small, you might notice:
- Amp shutting down or going into protection mode
- Wires feel hot after playing music
- Weak bass or sound distortion
If you see these signs, upgrade to a thicker wire immediately.
Upgrading Or Future-proofing Your System
If you plan to add more amps or upgrade your system later, choose a thicker wire now. It saves money and work in the future. For a 1500 watt amp, 2 AWG wire is strong enough for most upgrades.
Wire Gauge And Speaker Wire
The power wire is important, but don’t forget the speaker wire. For high-power speakers, use 12-14 AWG wire. For subwoofers, 10 AWG is even better.
Credit: www.youtube.com
Data Table: Wire Gauge Selection
Here’s a summary of wire gauge, current, and length:
| Wire Gauge | Current (Amps) | Length (Feet) | Recommended Use |
|---|---|---|---|
| 2 AWG | 125 | Up to 20 | 1500 watt amp |
| 4 AWG | 100 | Up to 10 | 1000 watt amp |
| 6 AWG | 65 | Up to 10 | 600 watt amp |
External Resource

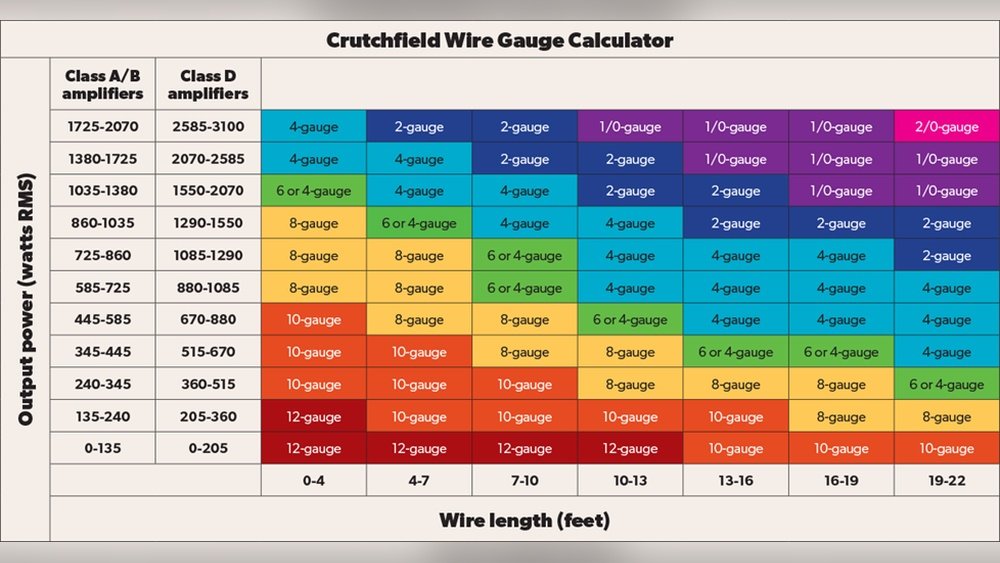

For more detailed wire gauge charts and advice, check the Crutchfield Wire Gauge Chart.
Frequently Asked Questions
What Happens If I Use A Thinner Wire For My 1500 Watt Amp?
Using a thin wire can cause overheating, power loss, and even fire risks. Your amp may shut down or sound weak. Always use the recommended gauge.
Can I Use 4 Awg Wire For A 1500 Watt Amp?
If your wire run is very short (under 10 feet), 4 AWG might work. For longer runs, always use 2 AWG to avoid voltage drop and overheating.
Is Copper-clad Aluminum Wire Safe For 1500 Watt Amps?
CCA wire is less efficient and heats up faster than pure copper. For high-power amps like 1500 watts, pure copper wire is safer and performs better.
How Do I Measure Wire Length For My Amp?
Measure the distance from your battery to your amp, including bends and curves. Always add a little extra for mistakes or rerouting.
Should My Ground Wire Be The Same Gauge As My Power Wire?
Yes. The ground wire should always match the power wire’s gauge for best performance and safety.
Choosing the right wire gauge for your 1500 watt amp is easy when you know the basics. Use 2 AWG wire for most setups, measure your cable runs, and invest in quality copper wire. This keeps your system safe, powerful, and ready for great sound. If you ever upgrade, you’ll be glad you chose a thicker wire from the start.
