Does the Illumination Wire Have to Be Connected? Expert Guide
Does The Illumination Wire Have To Be Connected
If you’re installing a new car stereo, you may notice a wire labeled “illumination” or “dimmer” in your wiring harness. For beginners, this small wire can be confusing. You might wonder: Does the illumination wire have to be connected? What happens if you leave it unconnected? Let’s break down what this wire does, when you need it, and what to expect if you skip it.
What Is The Illumination Wire?
The illumination wire is a part of many aftermarket and some factory car stereo wiring harnesses. Its main job is simple: it tells your stereo when to dim or brighten the display and buttons, usually when you turn your headlights on or off.
- Color: Most often orange, sometimes with a white stripe.
- Label: May be called “ILLUM,” “Dimmer,” or “Orange/White.”
- Function: Receives a small electrical signal (usually 12V) from the car’s lighting circuit.
This wire doesn’t power the stereo or speakers. It only adjusts the brightness level of the stereo’s lights.
What Happens If You Don’t Connect It?
Many beginners worry about leaving this wire unconnected. The truth is, your stereo will still work without it. Here’s what you should know:
- The radio will turn on, play music, and function normally.
- The display and button lights will stay at their default brightness, day or night.
- You won’t damage your stereo by leaving it unconnected.
But there are some side effects:
- The screen might be too bright at night, which can be distracting.
- In some cars, you may notice little or no difference, especially if the stereo has manual dimming.
Credit: www.youtube.com
When Should You Connect The Illumination Wire?
Not everyone needs to connect this wire, but in some cases, it’s helpful or necessary:
- Night Driving Comfort: If bright displays distract you at night, connect the illumination wire to auto-dim with your headlights.
- Factory Integration: Some cars with advanced dashboard lighting may require it for full compatibility.
- Manual Dimmer Not Available: If your stereo doesn’t let you adjust brightness manually, using the wire helps.
- OEM Steering Wheel Controls: In rare setups, the dimmer may also help with control backlighting.
If your car and stereo both have an illumination wire, it’s usually best to connect them.
How To Identify The Illumination Wire
Finding the right wire is important for a clean, safe install. Here’s how to spot it:
- Check the wiring diagram for your car and stereo.
- Look for orange (sometimes orange/white) wires.
- Labels may say “ILLUM,” “Dimmer,” or “Panel Light.”
Most wiring harness adapters also mark this wire clearly. If in doubt, use a multimeter to check for a 12V signal when headlights are turned on.
Credit: www.youtube.com
How To Connect The Illumination Wire
Connecting the illumination wire is a simple process, but requires care:
- Match the orange wire from your car to the orange (or orange/white) on the stereo harness.
- Use a secure connection:
- Solder and heat shrink
- Crimp connector
- Quality wire tap
- Test your lights. Turn the headlights on and check if the stereo dims.
Never connect the illumination wire to power, ground, or speaker wires. This can cause display issues or damage.

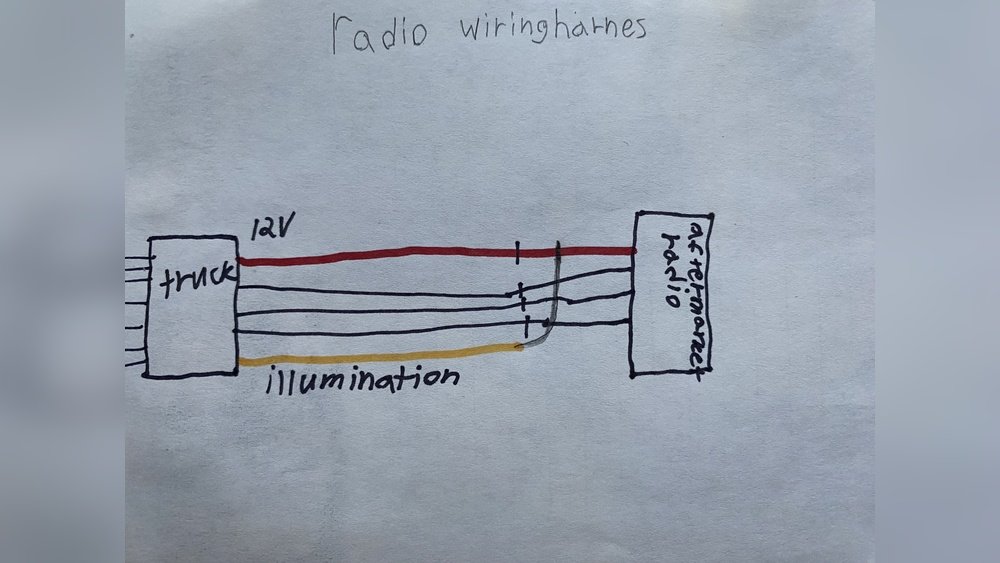

Typical Wiring Diagram Example
Here’s a simple example of how the illumination wire fits into a typical car stereo wiring setup:
| Wire Color | Purpose | Connects To |
|---|---|---|
| Yellow | Constant 12V (Memory) | Battery/Always Hot |
| Red | Accessory 12V | Ignition/Switched Power |
| Black | Ground | Vehicle Ground |
| Orange/White | Illumination | Dash Light Circuit |
The orange/white wire is the illumination wire. It connects only to the vehicle’s dash light circuit, not to power or ground.
Real-world Examples
Let’s look at a few common car stereo installation scenarios and how the illumination wire affects them.
Example 1: Basic Aftermarket Stereo In Older Car
- Car: 2004 Honda Civic
- Stereo: Basic single-DIN head unit
In this setup, the stereo works fine without the illumination wire. The display remains one brightness at all times. If you drive at night, the screen may be a bit bright.
Example 2: New Stereo In Modern Car With Led Dash Lights
- Car: 2016 Toyota Camry
- Stereo: Double-DIN touchscreen
Here, the factory wiring includes a strong dash illumination circuit. If you connect the illumination wire, the stereo dims automatically when headlights come on. If you skip it, the display could be distracting at night.
Example 3: Premium Oem Integration
- Car: 2020 Ford F-150 with factory steering wheel controls
- Stereo: Aftermarket with CAN-bus adapter
The adapter uses the illumination wire to synchronize all interior lights, including steering wheel buttons. Not connecting the wire can cause inconsistent lighting.
What If Your Car Has No Illumination Wire?
Some cars, especially older models, may not have a dedicated illumination wire. Here’s what you can do:
- Leave the stereo’s illumination wire unconnected. Most stereos are designed to function without it.
- Use the stereo’s manual brightness setting, if available.
- For advanced users: Tap into a nearby dash light wire, but only if you’re sure of the wiring.
Common Myths And Mistakes
Many beginners make assumptions or simple errors with the illumination wire. Here are some things to avoid:
- Myth: The stereo won’t work if you skip this wire. (False.)
- Mistake: Connecting it to a random power or ground wire, which can blow fuses or cause display issues.
- Myth: Every car has an illumination wire. (Many do not.)
- Mistake: Leaving it exposed. Always tape off unused wires to prevent shorts.
When You Should Not Connect The Illumination Wire
There are a few situations where leaving this wire unconnected is the better choice:
- Your car doesn’t have a matching wire.
- Your stereo has a built-in light sensor or automatic dimming.
- You prefer maximum brightness at all times.
- You are unsure about the car’s wiring and want to avoid mistakes.
In these cases, just tape off the wire end and leave it safely tucked away.
Advanced Dimming Features
Some modern stereos and cars offer more advanced dimming options:
- Light Sensor Dimming: Uses a sensor to detect darkness and dim automatically, no wire needed.
- Manual Control: Lets you set day/night brightness in the stereo’s menu.
- Color Customization: Allows changing display color based on day or night.
If your stereo has these features, connecting the illumination wire is less important. But for most basic models, it’s still useful.
Comparison: With Vs. Without Illumination Wire
To help you decide, here’s a quick comparison of how your stereo will behave with and without the illumination wire connected:
| Feature | With Illumination Wire | Without Illumination Wire |
|---|---|---|
| Display brightness at night | Dims automatically | Stays bright |
| Manual dimming | Sometimes available | Always needed |
| Distraction risk | Lower | Higher |
| Integration with dash lights | Yes | No |
Most users find automatic dimming more comfortable, especially during night driving.
Credit: www.reddit.com
How To Troubleshoot Illumination Wire Issues
If your stereo doesn’t dim when you turn on the headlights, or if the display flickers, here are steps to find the problem:
- Check the wiring diagram for both car and stereo.
- Use a multimeter to test the car’s illumination wire for a 12V signal with headlights on.
- Inspect all connections for loose wires or poor crimps.
- Make sure the stereo’s menu settings don’t override the wire input.
- If using an adapter, check that it’s compatible with your car model.
If you still have issues, consult a car audio professional.
Safety Tips For Beginners
Wiring can be intimidating, but safety comes first. Here are some basic tips:
- Disconnect the car battery before starting any wiring.
- Double check wire labels and colors.
- Don’t guess—use wiring diagrams or guides.
- Tape off all unused wires to avoid shorts.
- If you’re unsure, ask a professional or visit a trusted car audio forum.
Simple Decision Guide: Should You Connect The Illumination Wire?
Still not sure? Use this quick checklist:
- Your stereo and car both have an illumination wire → Connect it.
- Your stereo has manual brightness or light sensor → Optional.
- Your car has no matching wire → Leave unconnected.
- Not confident in wiring? → Leave unconnected and tape safely.
Data: How Common Is The Illumination Wire In Modern Cars?
A 2022 survey of aftermarket stereo installations found:
| Car Model Year | % with Illumination Wire | % without Illumination Wire |
|---|---|---|
| 2000–2009 | 75% | 25% |
| 2010–2019 | 85% | 15% |
| 2020 and newer | 90% | 10% |
Most newer cars include an illumination wire, but it’s not universal.
Non-obvious Insights For Beginners
- Illumination wires are not always required. Many people think all wires must be connected. In reality, the illumination wire is optional for stereo function but important for comfort.
- Aftermarket adapters may change wiring colors. Don’t just trust colors—always check diagrams and labels. Some harnesses use different color standards.
Key Takeaways
- The illumination wire is for automatic dimming, not essential power.
- Leaving it unconnected won’t stop your stereo from working.
- Connecting it improves night driving comfort.
- Safe installation means checking diagrams and using proper tools.
- Beginners can safely skip it, but connecting is easy if you follow instructions.
For more technical wiring details and diagrams, see Car Audio on Wikipedia.
Frequently Asked Questions
What Happens If I Don’t Connect The Illumination Wire?
Nothing bad will happen. The stereo will work, but the display may stay bright at night. You won’t damage anything by skipping it.
Can I Connect The Illumination Wire To Any Power Source?
No. Only connect it to the dash light circuit or matching wire in your car. Connecting to power or ground can cause problems.
My Car Doesn’t Have An Illumination Wire—what Should I Do?
Leave the stereo’s illumination wire unconnected and tape off the end. Use manual brightness settings if your stereo offers them.
Will Connecting The Illumination Wire Save Battery Life?
No. The illumination wire only controls display brightness. It does not affect the stereo’s main power or battery usage.
How Do I Know If My Car Has An Illumination Wire?
Check your car’s wiring diagram or manual. Look for an orange or orange/white wire labeled “illumination” or “dimmer. ” Use a multimeter to check for voltage when headlights are on.
Making the right choice with your illumination wire is simple if you know what it does. Focus on comfort and safety, and your car stereo will perform its best—day or night.
